| Max. worksheet width | 60" |
| Max. worksheet length | 120" |
| Laser power | 12.0 / 15.0 / 20.0 / 30.0 kW |
Laser Processing Machines

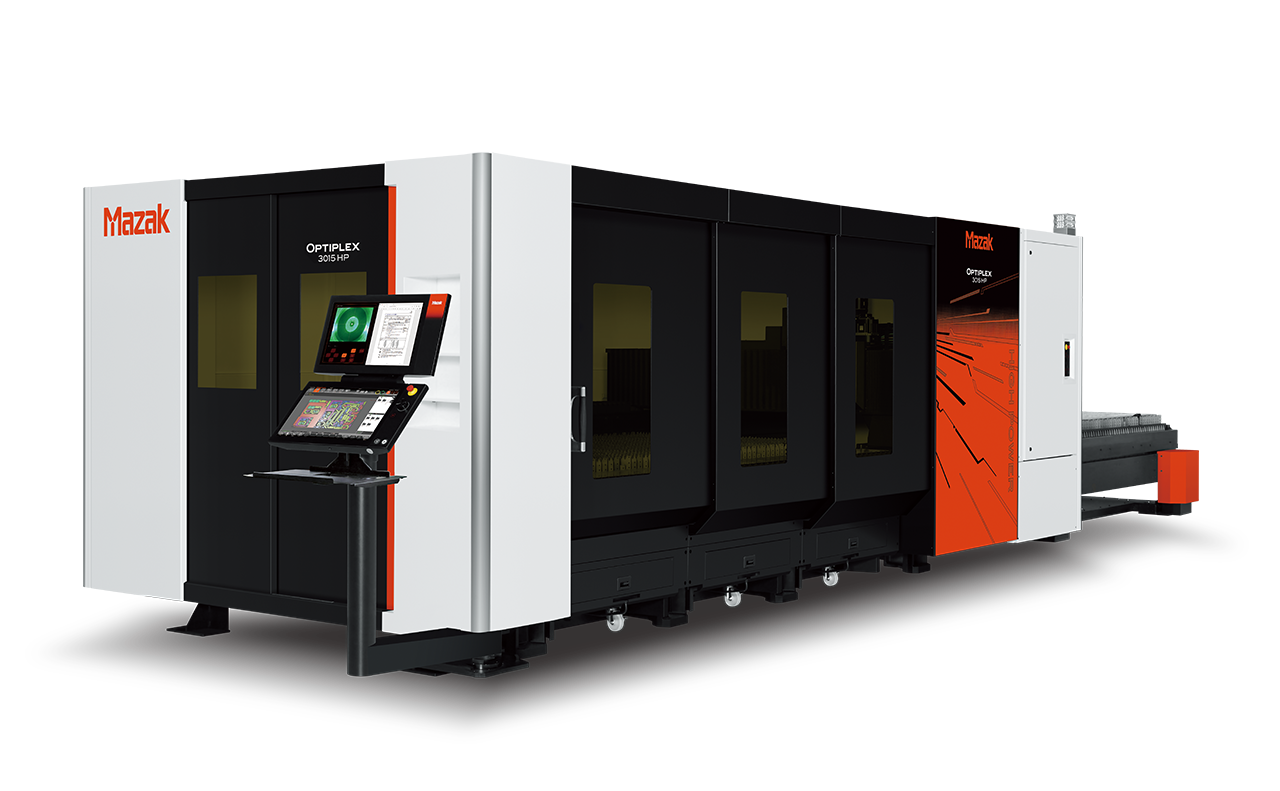

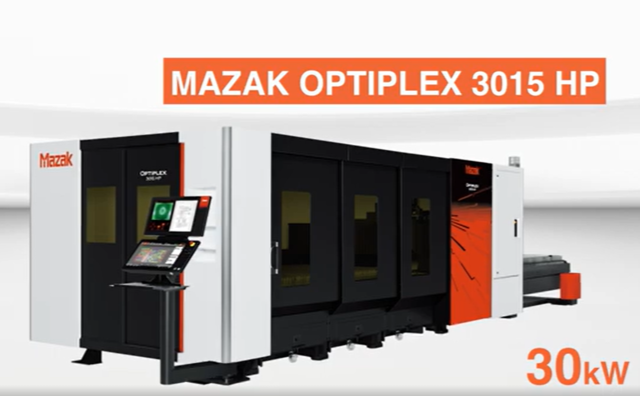

OPTIPLEX HP
Stable processing of thick materials at high speed and high quality
- Equipped with Mazak SmoothCUT 30kW, 20kW, 15kW & 12kW laser oscillator

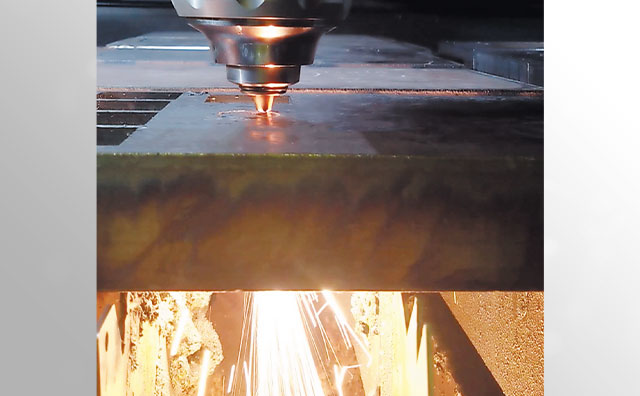

- Laser processing technology “GRAND CUT” enables stable continuous machining of thick materials
- Design focused on usability and ease of operation

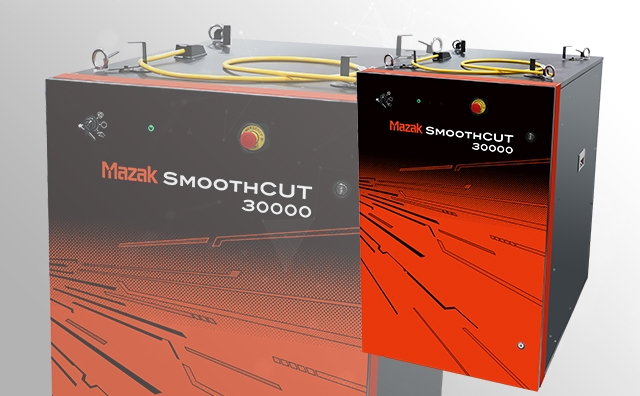

- Equipped with proprietary resonator “Mazak SmoothCUT”
- Equipped with CNC system MAZATROL SmoothLx
Achieves high speed and high quality processing
Mazak SmoothCUT and GRAND CUT increase the temperature of the molten iron while cutting, improving the quality of the cut surface. In addition, for mild steel with thickness of .98 inches, cut edge perpendicularity is improved by more than 80% compared to conventional machines. High-quality continuous machining of thick mild steel materials can be performed stably.
By adopting a newly developed nozzle and Mazak's unique processing technology, it is possible to perform stable processing at high speed and high quality on a variety of materials, such as mild steel and electric furnace materials up to a thickness of 1.97 inches, while minimizing the occurrence of processing defects.

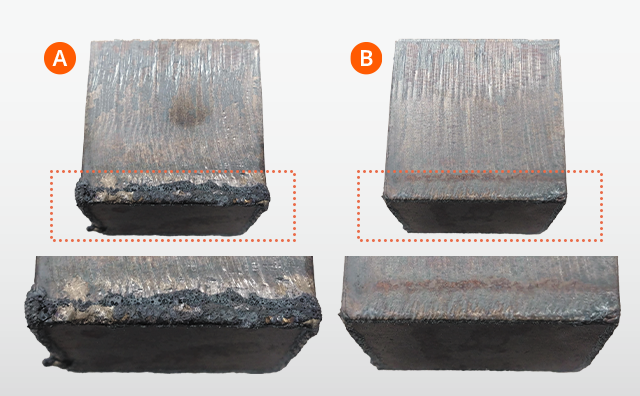

A: Cut surface using conventional resonator
B: Cut surface of a material with thickness of 2 inches using GRAND CUT + Mazak SmoothCUT
Wide open doors for easy loading and unloading
Wide opening doors

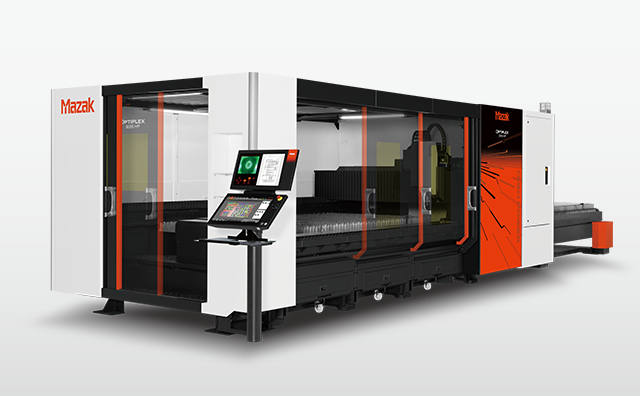

Sliding doors are installed on the front and side face of the machine, minimizing the floor space required. The OPTIPLEX 3015 HP has a large opening space of 47.24 inches at the front face and 126.38 inches at the side face, while the OPTIPLEX 4220 HP has an opening space of 46.85 inches at the front face and 123.23 inches at the side face. It ensures easier loading and unloading.
Automatic Nozzle Diagnosis / Automatic Beam Centering (option)

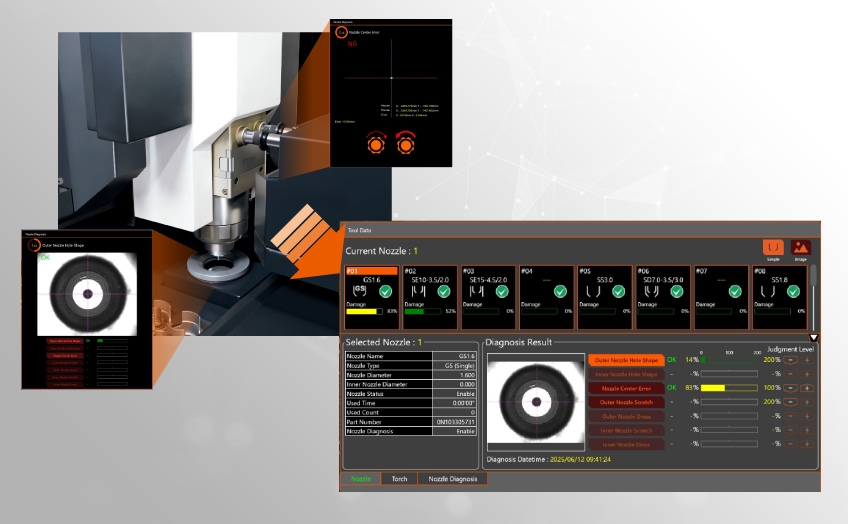

Automatic nozzle diagnosis automatically detects the condition of the nozzle and the deviation of the nozzle center position from images captured by the nozzle diagnosis camera. If any damage to the nozzle is detected, it is automatically replaced with another nozzle. If the nozzle center position is misaligned, it is automatically adjusted using the automatic beam centering. Automatic diagnosis and adjustment improve productivity and processing accuracy during automatic operations.
Automatic detection of machining area for nesting
Camera Network Nesting (option)*

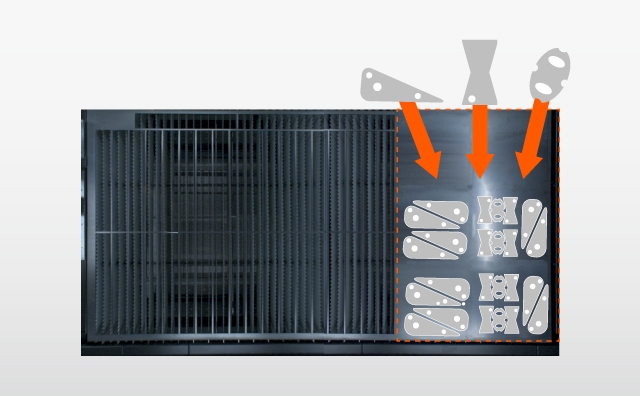

The nesting feature automatically determines how to arrange parts for optimal cutting on remnant material.
- *| MAZAK SMART SYSTEM (Mazak CAD/CAM system) is required to use Camera Network Nesting.
Wide and flat screen for easier operation
CNC system MAZATROL SmoothLx

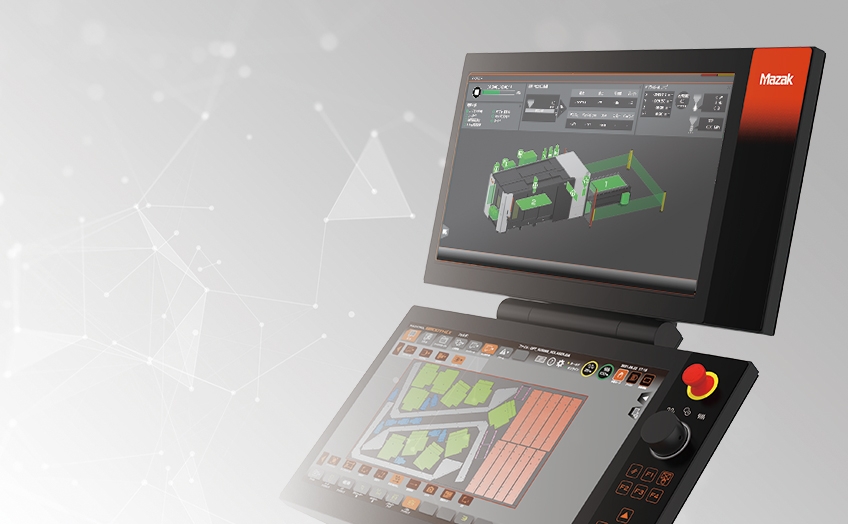

The 21.5- inch wide screen allows you to see all the nested materials at a glance. Apart from the Emergency Stop and Rotary Switch buttons, operational buttons feature a flat design. Pictograms make the operation more intuitive and user-friendly.
Large 21.5” LCD screen and touch panel
Operator can easily zoom in and out on the display screen with fingertips. The wide screen also allows the operator to check nesting at a glance.
Flat design for easier operation
Apart from the Emergency Stop and Rotary Switch buttons, operational buttons feature a flat design. The use of pictograms makes operation more intuitive.
Dual monitor*
Operator can work while referring to the cutting area and manual.
* Option
Machine monitor

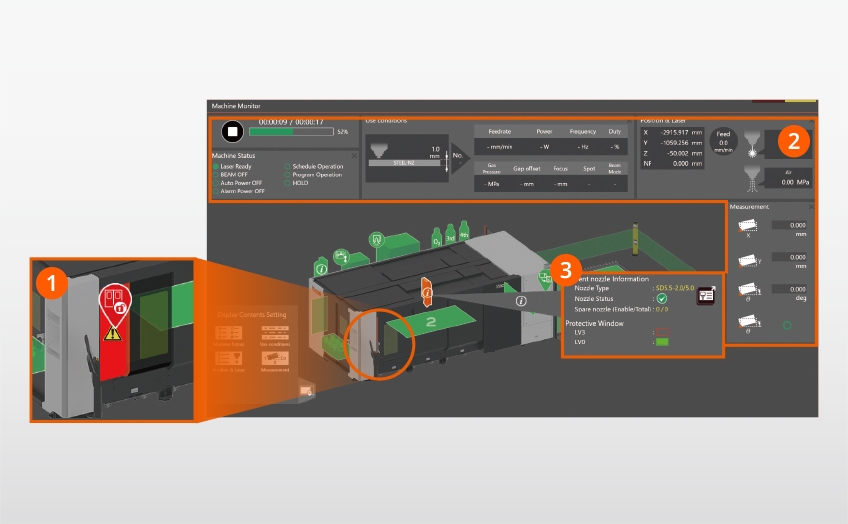

The machine monitor supports operators by providing easy access to the torch and machine information. Machine processing status information is displayed with the machine image, allowing operators to grasp the machine processing status and detailed data at a glance.
- 1: | Alarm displayed at door open
- 2: | Select and display the required information from machine status, cutting conditions, position & laser, and measurement.
- 3: | Torch information display
One-touch operation
All necessary information, such as the cutting condition database, can be called up with a single touch. It is now easier to operate.
Operability of CNC control

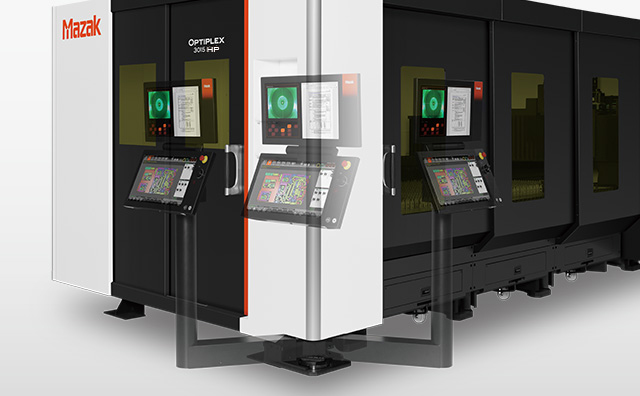

The rotating CNC control panel gives operators the option to work at the front or side of the machine. The screen also tilts, offering a comfortable operating position for all users.
OPTIPLEX 3015 HP
OPTIPLEX 4220 HP
| Max. worksheet width | 80" |
| Max. worksheet length | 162" |
| Laser power | 12.0 / 15.0 / 20.0 / 30.0 kW |
