| Max. worksheet width | 80" |
| Max. machining length | 146" |
| Laser power | 20.0 kW |
Laser Processing Machines

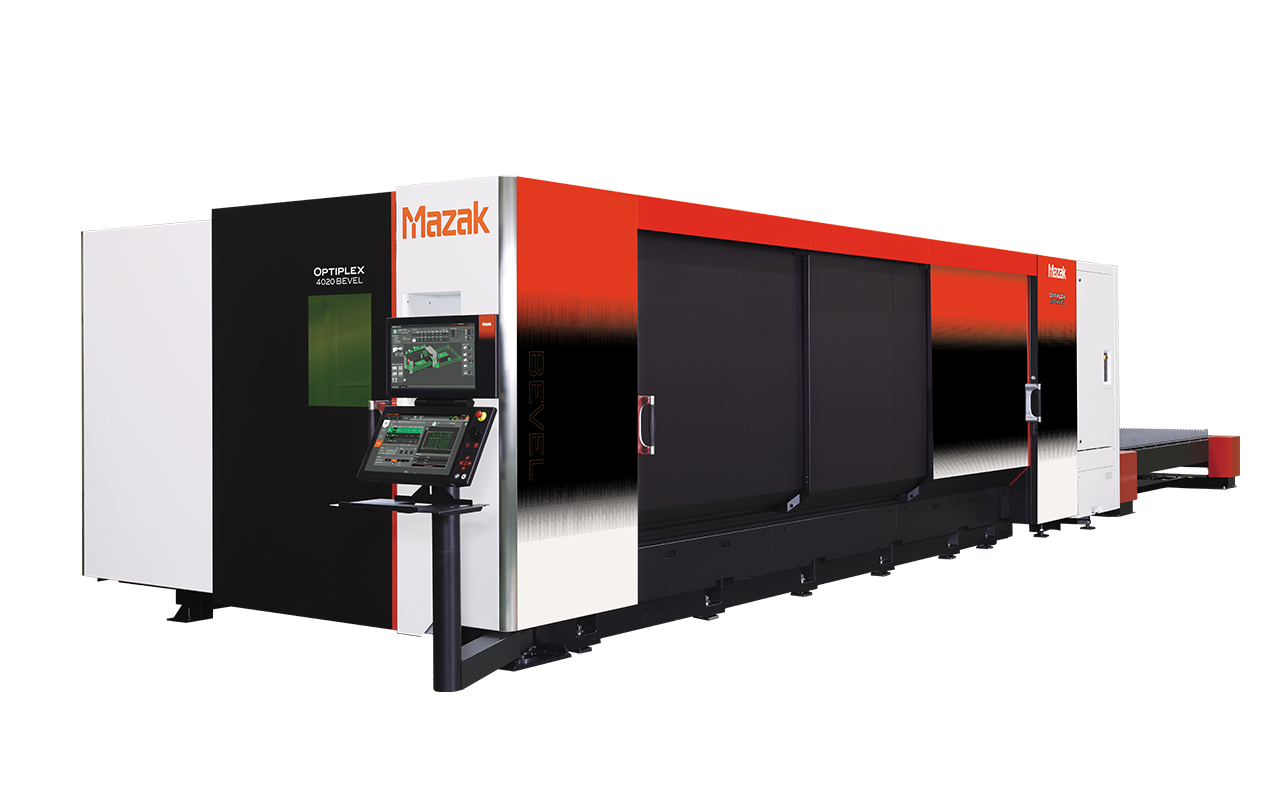

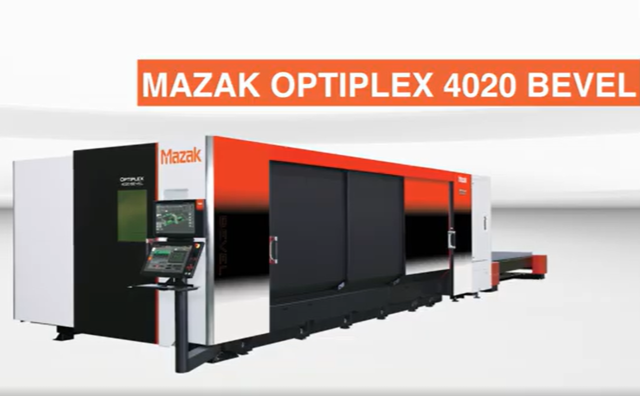

OPTIPLEX 4020 BEVEL
Fiber laser processing machine with bevel cutting
- Laser processing with process integration of 2D cutting and bevel cutting done by a single machine, achieving reduced material handling and setup time and improved workpiece positioning accuracy for after process such as welding and assembly
- Various bevel cutting type capability to match your production requirements, including V, Y, X, and K
- Equipped with Mazak SmoothCUT 20kW laser oscillator
- Equipped with SmoothBEVEL control, the CNC system for advanced bevel cutting.
- Fully enclosed cutting area for reduced noise and dust
Integrate bevel cutting into a single machine
Process consolidation through reduction of processing steps
Bevel cutting and laser processing capabilities are available on one machine, eliminating the need for dedicated equipment or manual processing afterwards and significantly reducing lead times.

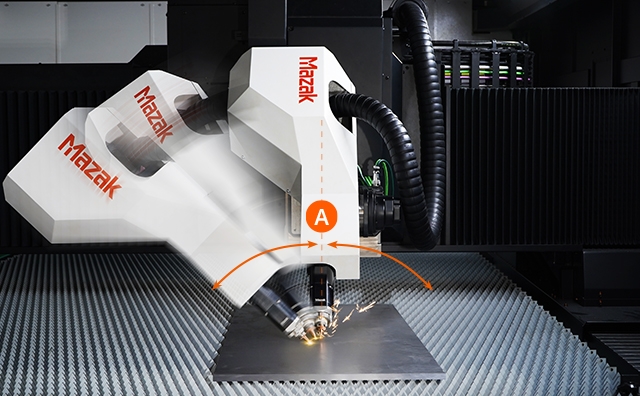

A: ±45°

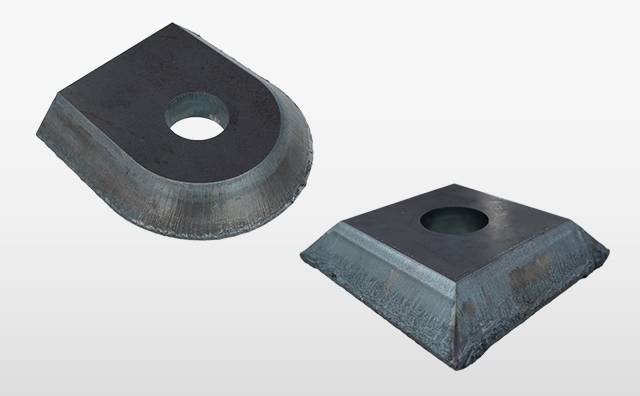

Production with various angles and shapes available
Various bevel cutting such as V-, Y-, X-, and K-type to match your production requirements.
Bevel cutting capabilities enable optimal laser processing according to the application of the materials and welding conditions, allow for the processing of complex products, and create the potential for new business opportunities.
Available bevel processing type
V type bevel cutting

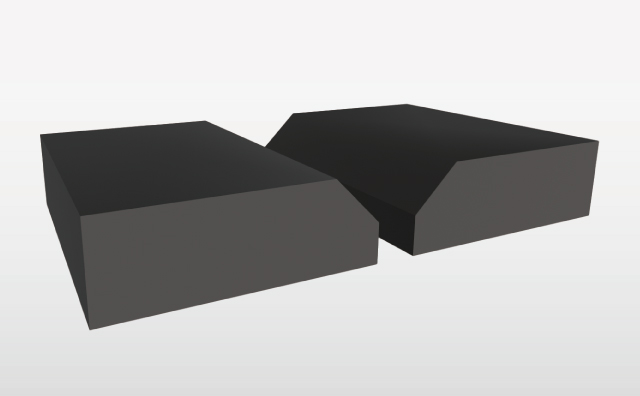

Y type bevel cutting

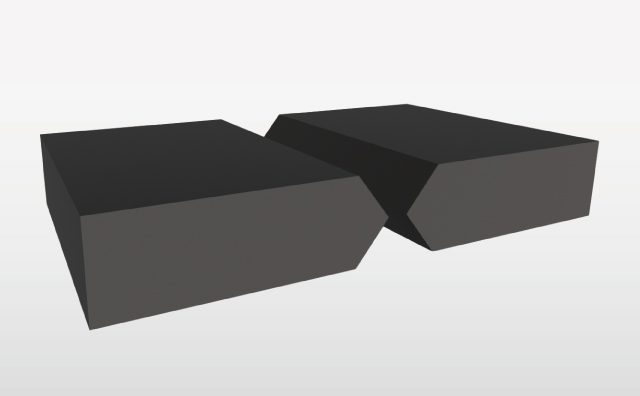

X type bevel cutting

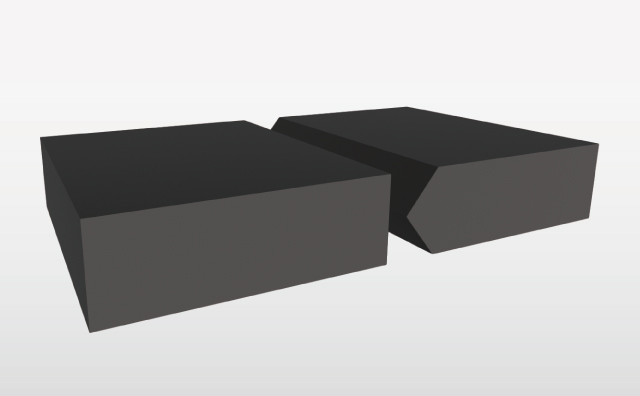

K type bevel cutting
Proprietary fiber laser oscillator achieves high quality and high productivity

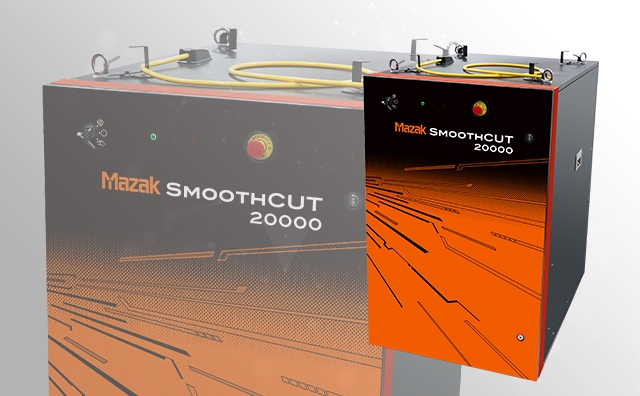

Mazak SmoothCUT
Mazak SmoothCUT achieves optimal beam quality and beam shape suitable for processing various material thicknesses.
Tuned for the optimum beam shape for Bevel Cut application.
CNC system for laser processing machines with bevel cutting

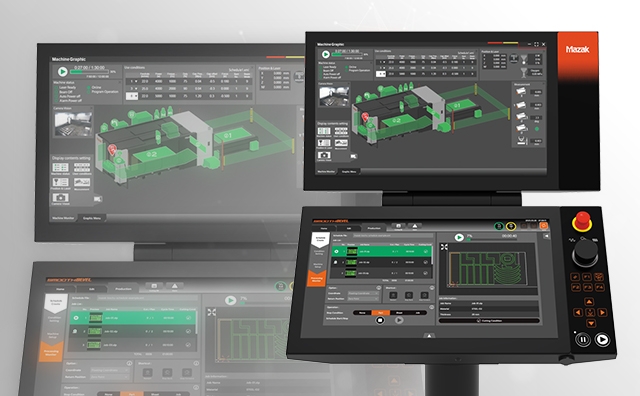

SmoothBEVEL
- From programming creation to nesting optimization, the processes including bevel cutting are all managed on the CNC.
- The 21.5- inch widescreen, flat screen design, and pictograms allow for intuitive operation.
- Simple CAD/CAM functions are available on SmoothBEVEL control, which allow for drawing, importing, bevel assignment, and simple nesting.
